RE015-LF | Roth Elektronik

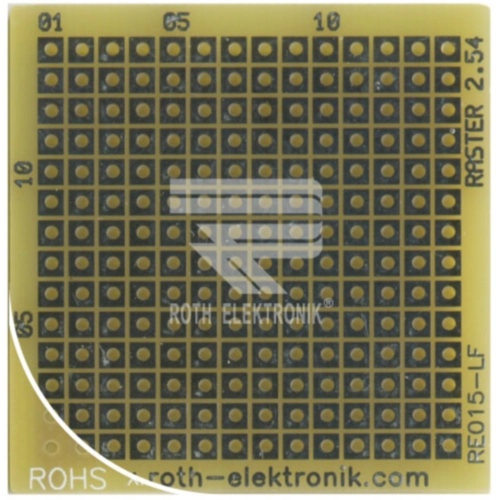

DiL prototyping board, 40 x 40 mm, single-sided, 14 x 14 solder pads, Roth Elektronik RE015-LF
Order No.: 10H6106
EAN: 4099889461619
MPN:
RE015-LF
Discontinued
Unit Price (€ / pc.)
3.4391 € *
Available: 3 pcs.
Total Price:
3.44 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4391 €
10 pcs.
3.0226 €
100 pcs.
2.6537 €
250 pcs.
2.5466 €
1000 pcs.
2.3919 €
*incl. VAT plus shipping costs
Subject to prior sale
DiL prototyping board, RE015-LF, Roth Elektronik
Single-sided 35 µm copper plating; Dimensions: 40 x 40 mm. Substrate: epoxy fiber-glass FR 4. Surface: HAL lead-free. Board thickness: 1.5 mm. Perforation layout: 14 x 14 solder pads. Solder pad diameter: 2.0 x 2.0 mm. Perforation diameter: 1.0 mm. Grid: 2.54 x 2.54 mm.
Type: RE015-LF, DiL prototyping board, 40 x 40 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | lab board | |
| One / two-sided | single sided | |
| Material | FR4 epoxy | |
| Throughplated | No | |
| Grid | 2.54 mm | |
| Length | 40 mm | |
| Width | 40.5 mm | |
| Height | 1.5 mm | |
| Hole diameter | 1 mm | |
| copper strength | 35 µm | |
| Surface type | hot air leveling (HAL) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85340019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
