029130000 | Rose
Poylamide/PVC handheld enclosure, (L x W x H) 191 x 440 x 76 mm, yellow/black (RAL 1003), IP65, 029130000
Unit Price (€ / pc.)
375.7306 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
375.73 € *
Price list
Quantity
Price per unit*
1 pcs.
375.7306 €
5 pcs.
338.0195 €
10 pcs.
300.3322 €
*incl. VAT plus shipping costs
**Subject to prior sale

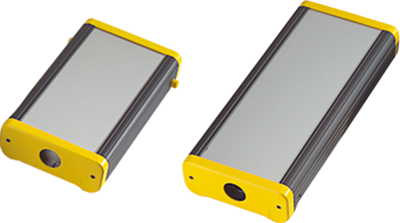

Portable console, type Rose Pilot 50 / 29.13 00 00
For measuring and control/automation technology, variable length through profile technology.
Material: polyamide 6/PVC
Degree of protection: IP 65
Impact resistance: min. 5.0 Joule (DIN 50014)
Combustibility of end caps: HB/UL 94
Color of end caps: rapeseed yellow
PVC profiles: black
Thermal resistance: - 20 °C to +70 °C
Outer dimensions (W x L x H)): 191 x 440 x 76 mm
Technical specifications
| Width | 440 mm | |
| Colour | yellow/black | |
| Height | 76 mm | |
| Length | 191 mm | |
| Material | poylamide/PVC | |
| RAL number | 1003 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
