LA-301MB | Rohm Semiconductor

7-Segment Display LA-301MB

Order No.: 70S8010
MPN:
LA-301MB
Series: LA-301
LA-301MB Rohm Semiconductor Segment Displays

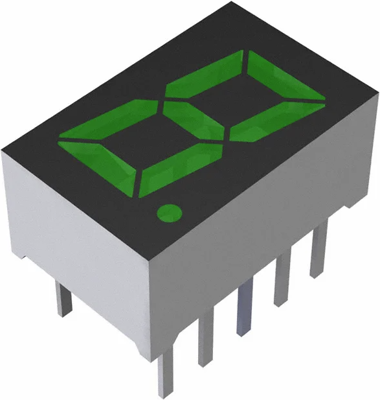

Image may differ
Unit Price (€ / pc.)
2.3919 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.3919 €

Single Digit LED Numeric Display, LA-301MB, Rohm Semiconductor

LA-301MB is developed because of the demand for small single digit LED Numeric Display. Materials of emission are GaAsP on GaP, AlGalnP and GaP. This is the height of a letter 8mm, single digit LED Numeric Display that is packed by epoxy resin.

Features

  • The height of a letter is 8mm
  • The light don’t leak from the segment in spite of the small package
  • Each color has anode common and cathode common respectively
Technical specifications
Filter Property Value
Number of positions 1
Character height 8 mm
Colour green
Light intensity min. 0.0036 cd
Light intensity typ. 0.01 cd
Wavelength 563 nm
Rated current 10 mA
Connection anode
Assembly THT
Length 11 mm
Width 7 mm
Height 5 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85414100
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 6/8/11
RoHS conform Yes
