PRI-52 | RO/SE
Current guard, 1 Form C (NO/NC), 8 A, 230 V (AC), PRI-52
Unit Price (€ / pc.)
80.4083 € *
Available: 5 pcs.
Leadtime: 1 Week **

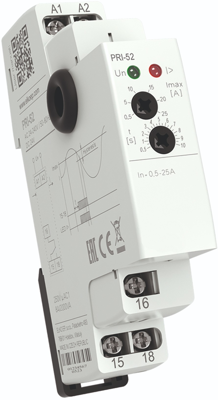

Current monitoring relay, PRI-52, RO/SE
Features
- The conductor feedthrough is located in the middle of the device
- A current transformer is integrated in the device, which measures the current in the conducted conductor
- Current monitoring up to 600A with connection of external current transformer
- Fine adjustment (by potentiometer) of the tripping current - range AC 0.5... 25A
- Fine adjustment (by potentiometer) of delay - adjustable in the range 0.5... 10s
- Output contact:1x changeover contact 8 A (AC1)
- 1-phase, 1 TE, DIN-rail mounting, clamping bracket
Technical specifications
| Connection | screw connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi | |
| Breaking capacity | 2500 VA | |
| Switching Voltage (AC) | 230 V | |
| switching current | 8 A |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
