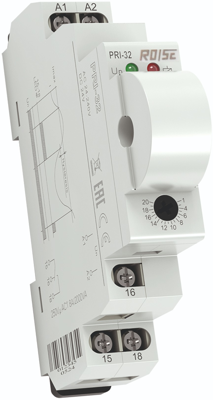

PRI-32 | RO/SE

Current relay, 1 Form C (NO/NC), 8 A, 24 V (DC), 240 V (AC), PRI-32

Order No.: 80H950
EAN: 4099891742416
MPN:
PRI-32
Series: PRI
PRI-32 RO/SE Monitoring Relays
Image may differ
Unit Price (€ / pc.)
84.014 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
84.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
84.014 €

Current monitoring relay, PRI-32, ROSE BLECH

The PRI-32 is a current monitoring relay of Imax level passing through a hole in 1P - AC. This construction reduces thermal stress of product when compared with conventional solutions with inbuilt shunt, and increases current range up to 20 Amps, and galvanically separates monitored circuit.

Technical specifications
Filter Property Value
Switching Voltage (DC) 24 V
switching current 8 A
Contact type 1 Form C (NO/NC)
Breaking capacity 2500 VA
Switching Voltage (AC) 240 V
Connection screw connection
Contact material AgNi
Logistics
Property Value
Customs tariff number 85364900
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
