159456 | Riegler
Check valve, 160 bar, 159456
Order No.: 63G7460
EAN: 4047322640862
MPN:
159456
RSV2234LST
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
68.6987 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
68.70 € *
Price list
Quantity
Price per unit*
1 pcs.
68.6987 €
2 pcs.
65.7237 €
3 pcs.
62.9986 €
*incl. VAT plus shipping costs
Subject to prior sale

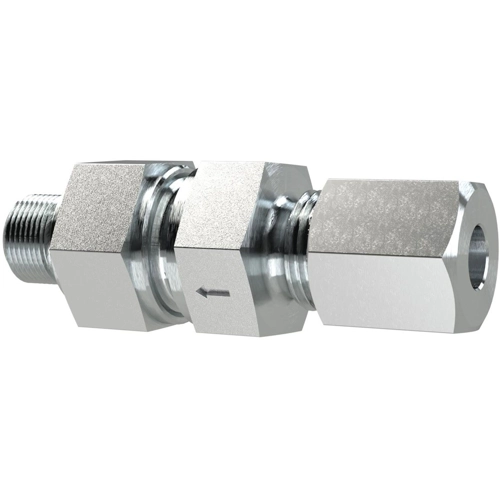

Non-return valve, 159456, Riegler

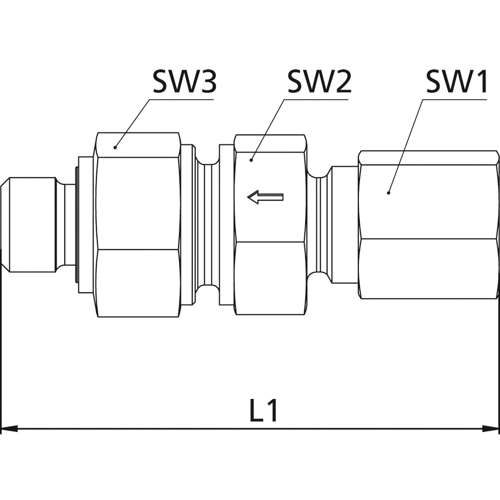

Non-return valve, G 3/4 o., bite-type tube to thread, Pipe exterior Ø 22, PN max. 160, a/f1 36, a/f2 41, a/f3 46, galvanised steel. Non-return valve, flow direction bite-type tube to thread, parallel male thread, light type.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | check valve | |
| Nominal width | 22 mm | |
| Pressure range | 160 bar | |
| Connection | threaded connection G 3/4/Screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 84813091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
