194105 | Riegler
Angle piece, L 47 mm, 16 bar, brass, for pipe systems, 194105
Order No.: 63G9713
EAN: 4047322681872
MPN:
194105
WST114MS90II
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
25.0138 € *
Available in 3 Days: 54 pcs. - if ordered today
Total Price:
25.01 € *
Price list
Quantity
Price per unit*
1 pcs.
25.0138 €
3 pcs.
23.8357 €
5 pcs.
22.4077 €
7 pcs.
21.1463 €
*incl. VAT plus shipping costs
Subject to prior sale

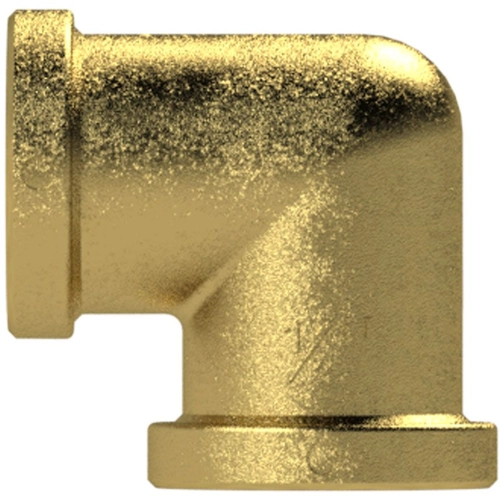

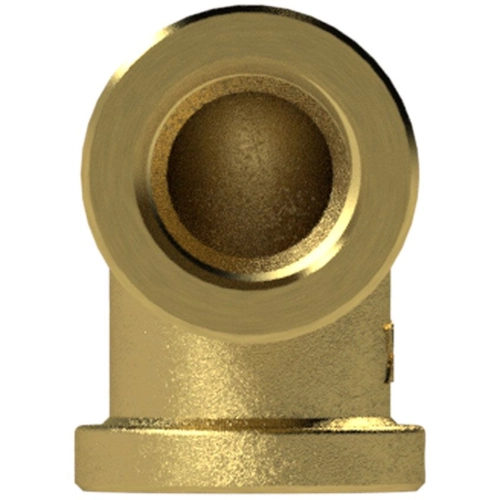

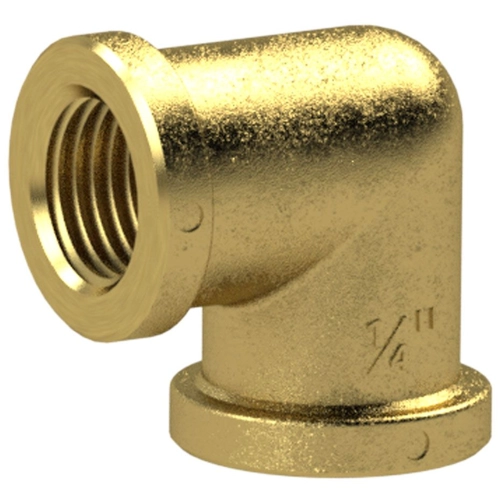

Angled piece, 194105, Riegler
Angled piece, 90°, interior / interior, G 1 1/4, max. operating pressure 16 bar, max. operating temperature 120 °C, bright brass.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | angle piece | |
| Thread size | 2 x G1 1/4 | |
| Pressure | 16 bar | |
| Material | brass | |
| Length | 47 mm | |
| Suitable for | pipe systems |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 74122000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
