141746 | Riegler

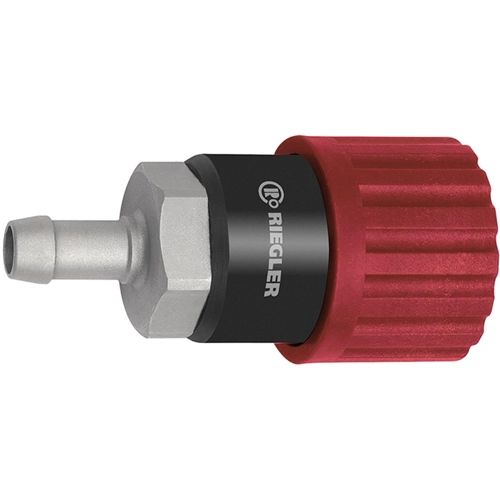

Rotary safety coupling, L 70 mm, 25 bar, steel, for hose, 141746
Order No.: 63G1930
EAN: 4047322566667
MPN:
141746
423.25-DREH
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
30.7258 € *
Available in 3 Days: 2 pcs. - if ordered today
Total Price:
30.73 € *
Price list
Quantity
Price per unit*
1 pcs.
30.7258 €
3 pcs.
29.2621 €
5 pcs.
27.5247 €
7 pcs.
25.9777 €
*incl. VAT plus shipping costs
Subject to prior sale
Swivel safety coupling, 141746, Riegler
High quality, robust and long lifetime one-hand rotation secure coupling. A secure connection is made by pushing in the plug-in nipple that clicks in audibly. Uncoupling is done by rotating the sleeve anti-clockwise. For this, the pending pressure in the coupling and line are vented, however the plug-in nipple is not completely released via a safety latch. The plug-in nipple can only be pulled out after a clockwise rotation of the sleeve. This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Applications
- Pneumatic system
- Machine and plant engineering
- Measurement
- Monitoring and control systems
- Manufacturing industry
- Workshops
- Automotive
- Mining
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | rotary safety coupling | |
| Thread size | 13 mm | |
| Pressure | 25 bar | |
| Material | steel | |
| Medium | compressed air, gases | |
| Length | 70 mm | |
| Suitable for | hose |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 84812090 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
