134081 | Riegler
Safety coupling, L 84.5 mm, 20 bar, brass, nickel-plated, for hose, 134081
Order No.: 63G2945
EAN: 4047322483599
MPN:
134081
249.25-S
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
39.4366 € *
Available in 3 Days: 1 pcs. - if ordered today
Total Price:
39.44 € *
Price list
Quantity
Price per unit*
1 pcs.
39.4366 €
2 pcs.
37.7349 €
3 pcs.
36.1641 €
*incl. VAT plus shipping costs
Subject to prior sale

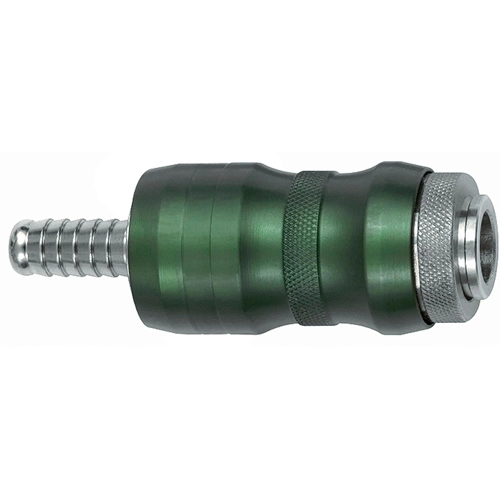

Safety coupling, 134081, Riegler
Safety air relief coupling for gaseous media. Combination of a sliding valve and a quick disconnect coupling. Connection is pressureless. Only a low spring force has to be overcome. Pressure only builds up when the green sleeve is pushed forward. It is impossible to disconnect the hose either intentionally or inadvertently in this position. When the sliding sleeve is moved back into its home position, the air is relieved from the hose and the coupling can be disconnected. This safety coupling is not suitable for direct attachment to a pulsating tool.
Applications
- Pneumatic system
- Machine and plant engineering
- Manufacturing industry
- Workshops
- Automotive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | safety coupling | |
| Thread size | 8 mm | |
| Pressure | 20 bar | |
| Material | brass, nickel-plated | |
| Length | 84.5 mm | |
| Suitable for | hose |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84812090 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
