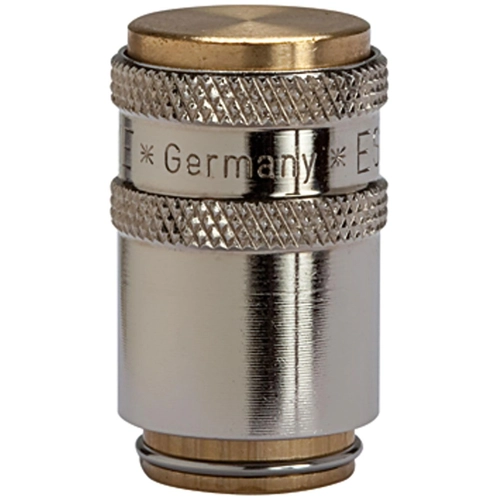

107973 | Riegler
Temperature controlled locking coupling, L 37 mm, 15 bar, brass, for hose, 107973
Order No.: 63G3276
EAN: 4047322258968
MPN:
107973
280.40
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
20.0872 € *
Available in 3 Days: 1 pcs. - if ordered today
Total Price:
20.09 € *
Price list
Quantity
Price per unit*
1 pcs.
20.0872 €
3 pcs.
19.1114 €
5 pcs.
18.2189 €
7 pcs.
17.1479 €
*incl. VAT plus shipping costs
Subject to prior sale
Temperature control shut-off coupling, 107973, Riegler
Temperature control shut-off coupling DN 9, connection: closed, MS 2.0401, L= 37 mm, PN max. 15 bar, medium/ambient -20°C to 160°C. Compatible with HASCO Z 8 system. For temperature control applications involving hot or cold water or heat transfer oil, e.g. for a cooling circuit on a plastics processing machine; optionally with free passage, one or both sides sealing; female-threaded coupling and plug with female-threaded PTFE seal.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | temperature controlled locking coupling | |
| Pressure | 15 bar | |
| Material | brass | |
| Medium | air, water, oil, vacuum | |
| Length | 37 mm | |
| Suitable for | hose |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84818079 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
