107537 | Riegler
Safety coupling, L 60 mm, 10 bar, brass, nickel-plated, for hose, 107537
Order No.: 63G2987
EAN: 4047322216494
MPN:
107537
249.102
This item is no longer available.
As an alternative, we recommend the following item:
Safety coupling, with double locking, L 60 mm, 10 bar, brass, nickel-plated, for hose inner Ø 8 mm, 107537
Order No.: 64G0515
Manufacturer: Riegler
per pc. 19.5041 € *

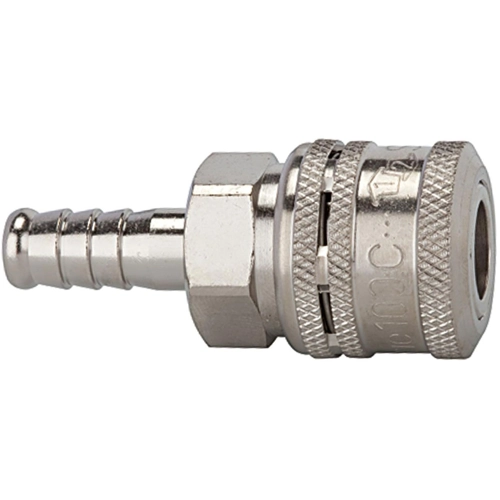

Safety coupling, 107537, Riegler
One-hand safety coupling with double locking mechanism. Connection: Similar to a standard coupling, simply by pressing the plug into the coupling. Disconnection: The first locking mechanism is accessible when the sleeve is pushed back. The coupling valve closes. Air can then be relieved from the plug side (hose). The second locking mechanism is released by actuating the unlocking sleeve again. The coupling can now be disconnected.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | safety coupling | |
| Thread size | 8 mm | |
| Pressure | 10 bar | |
| Material | brass, nickel-plated | |
| Length | 60 mm | |
| Suitable for | hose |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84812090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
