107127 | Riegler
Quick-release coupling, L 38 mm, 35 bar, brass, for plastics processing, food, pharmaceutical or electronics industry, 107127
Order No.: 63G331
EAN: 4047322058858
MPN:
107127
243.19/S
Unit Price (€ / pc.)
5.9024 € *
Available in 3 Days: 38 pcs. - if ordered today
Total Price:
5.90 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9024 €
5 pcs.
5.5930 €
10 pcs.
5.2955 €
25 pcs.
4.9504 €
50 pcs.
4.6529 €
*incl. VAT plus shipping costs
Subject to prior sale

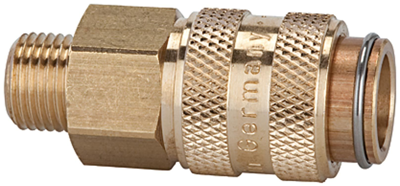

Quick-connect coupling, 107127, Riegler
The quick-connect coupling has an inner diameter of 5, is made of bright brass, has a G 3/8 ET thread, and can operate under a pressure range of 0 to 35 bar. It is suitable for use in medium and ambient temperatures ranging from -20 °C to 100 °C. One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop. To prevent injuries or a "whiplash" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Applications
- Pneumatic system
- Measurement, monitoring
- Control systems
- Manufacturing industry
- Medical technology
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass | |
| Pressure | 35 bar | |
| Product type | quick-release coupling | |
| Thread size | G3/8 | |
| Suitable for | plastics processing, food, pharmaceutical or electronics industry | |
| Length | 38 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84818079 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
