103151 | Riegler
Ball valve, L 59 mm, 14 bar, brass, nickel-plated, for pipe systems, 103151
Order No.: 64G0328
EAN: 4047322366205
MPN:
103151
321.04
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
16.5529 € *
Available in 3 Days: 388 pcs. - if ordered today
Total Price:
16.55 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5529 €
3 pcs.
15.7437 €
5 pcs.
15.0059 €
7 pcs.
14.1253 €
*incl. VAT plus shipping costs
Subject to prior sale
Ball valve, 103151, Riegler

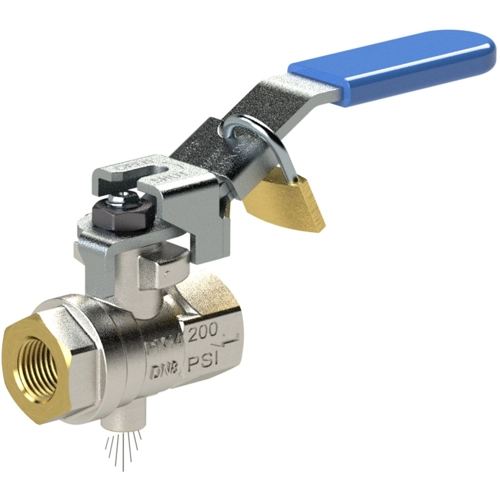

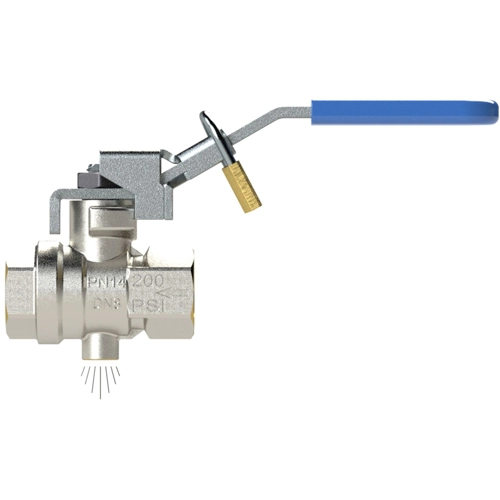

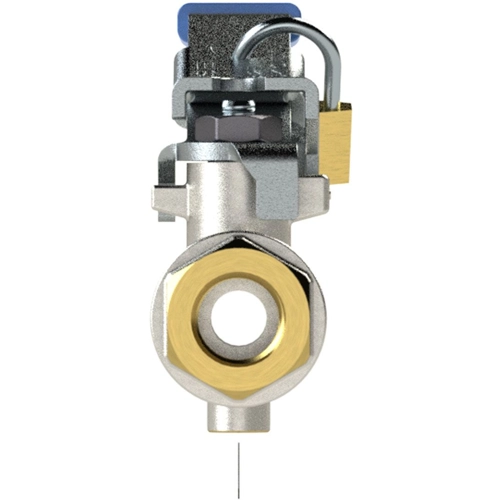

Ball valve, two parts, made of nickel-plated brass. Specially designed for pneumatic applications. The valve shuts off the supply line and bleeds the application area. A lockable hand lever in the closed position ensures a high level of protection against manipulation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | ball valve | |
| Thread size | Rp 1/2 | |
| Pressure | 14 bar | |
| Material | brass, nickel-plated | |
| Length | 59 mm | |
| Suitable for | pipe systems |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 84818081 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
