610 190 6 | Rennsteig Werkzeuge
Crimping pliers for wire end ferrules, 0.14-16 mm², AWG 26-5, Rennsteig Werkzeuge, 610 190 6
Unit Price (€ / pc.)
221.3876 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

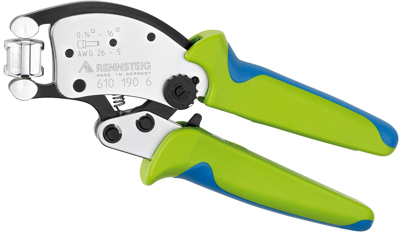

Wire end ferrule crimping tool, 610 190 6, RENNSTEIG
Wire end ferrule crimping pliers Twistor 16, self-adjusting, combines the features of pliers with front and side entry in one universal tool, automatic square crimping of insulated and uninsulated wire end ferrules according to DIN 46 228, large cross section range can be processed without changing the pliers, crimping of extra-long ferrules up to 16 mm in one operation possible, hand force optimized design of the mechanics and improved ergonomics for fatigue-free working, 0.14 - 16.0 mm², Made in Germany
Technical specifications
| Crimping Range (AWG) | AWG 26-5 | |
| Crimping Range (mm²) | 0.14-16 mm² | |
| Suitable for | wire end ferrules | |
| Weight | 478 g | |
| Length | 200 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
