RACPRO1-4SP/24V/10A | RECOM
E-Fuse load switch, electronic, 10 A, 24 V (DC), push-in, DIN rail, IP20, RACPRO1-4SP/24V/10A
Unit Price (€ / pc.)
134.3510 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
134.35 € *
Price list
Quantity
Price per unit*
1 pcs.
134.3510 €
5 pcs.
129.3054 €
10 pcs.
120.4518 €
*incl. VAT plus shipping costs
Subject to prior sale
AC/DC converter, RACPRO1-4SP/24V/10A, RECOM

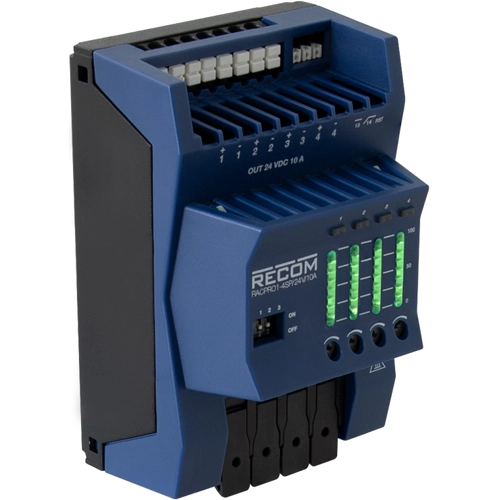

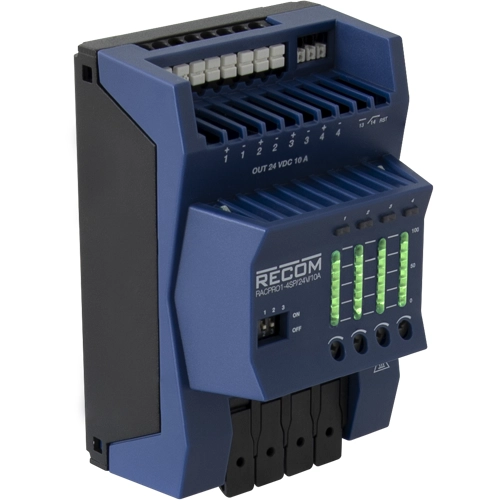

The RACPRO1-4SP/24V/10A is a 4-channel electronic fuse (e-Fuse) load switch with independent overcurrent limit control and real-time output current indication. Each channel is separately protected so that overload or fault conditions on an individual load do not affect overall system reliability or function. The useful LED indicators show the output current and change from green to yellow (current within limit) to orange (current at limit) to red (overcurrent or short-circuit). A volt-free DC-OK output can be used to monitor system function. Each channel can also be switched ON or OFF to ease fault diagnostics or for maintenance.
Features
- Push-in connectors for tool-less wiring
- Start-Up delay adjustable by switch
- Adjustable power limit & load indication by LED
- Individual ON/OFF and OCP limit for each channel
- Short circuit protection & power boost 150%/5s
- DC input UVLO protection
- DC-OK contacts with remote fault reset
- Overload priority channel protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | fuse | |
| Version | electronic | |
| Rated current | 10 A | |
| Rated voltage (DC) | 24 V | |
| Connection | push-in | |
| Type of mounting | DIN rail | |
| Actuator | slide switch | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
