RSO-2415DZ/H3 | RECOM
DC converter, 9-36 VDC, 1 W, 2 outputs, ±15 VDC, 80 % efficiency, RSO-2415DZ/H3
Unit Price (€ / pc.)
25.7159 € *
Standard delivery time from the manufacturer is: 6 Weeks

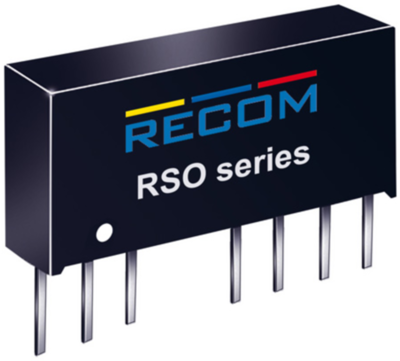

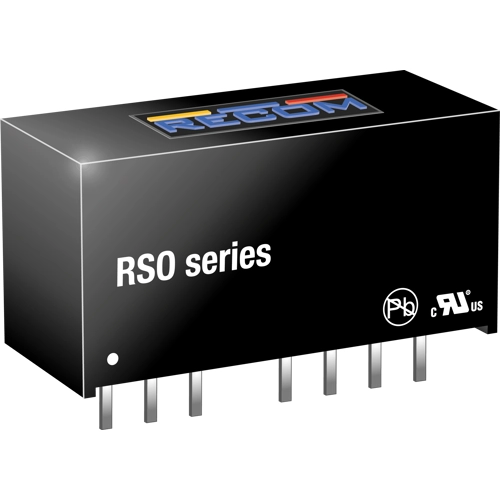

DC/DC Converter, RSO-2415DZ/H3, RECOM
High-power-density, an industrial temperature range of -40°C to +85°C and extra features like On-Off-control are just some of the characteristics of this converter, ideal for highly sophisticated industrial-designs. The RSO series is available with isolation of 2kV or 3kV by choosing option "/H2" or "/H3" in which case it is also ideal for medical applications which additionally require EN-60601- 1 certification. The standard version offers 2:1 input voltage range, while the “Z” version features 4:1 input voltage range, which includes an input voltage range covering both 5V and 12V supplies.
Features
- 2:1 and 4:1 Wide Input Voltage Ranges
- UL94V-0 Package Material
- Low Noise
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 34 mA | |
| Output voltage DC | ±15 VDC | |
| Input voltage AC | 9-36 VDC | |
| Power | 1 W | |
| efficiency | 80 % | |
| Design | SIP8 | |
| Isolation voltage | 3 kV | |
| Length | 21.8 mm | |
| Width | 9.2 mm | |
| Height | 11.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
