RS3-2405S | RECOM
DC converter, 18-36 VDC, 3 W, 1 output, 5 VDC, 81 % efficiency, RS3-2405S
Unit Price (€ / pc.)
16.5648 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
16.56 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5648 €
10 pcs.
15.8270 €
50 pcs.
15.3867 €
*incl. VAT plus shipping costs
Subject to prior sale

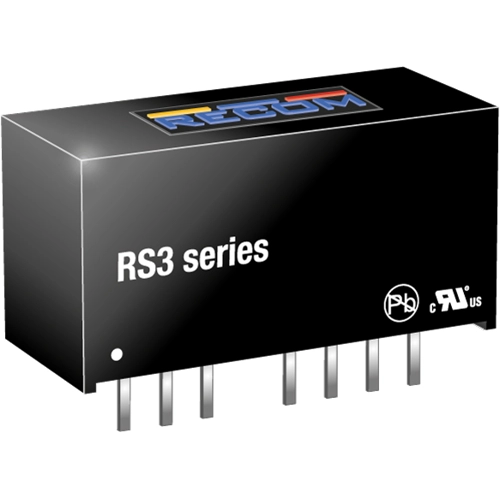

DC/DC converter, RS3-2405S, RECOM
Very high power density, 2:1 or 3:1 input voltage range, a wide operating temperature range of -40°C to +71°C, and extra features such as On/Off control are just some of the characteristics of this converter, which is ideal for highly sophisticated industrial designs.
Features
- 2:1 and 3:1 wide input voltage ranges
- Continuous short circuit protection
- Low ripple and noise
- CTRL On/Off
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 600 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 18-36 VDC | |
| Power | 3 W | |
| efficiency | 81 % | |
| Design | through hole | |
| Isolation voltage | 1 kV | |
| Length | 21.8 mm | |
| Width | 9.2 mm | |
| Height | 11.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
