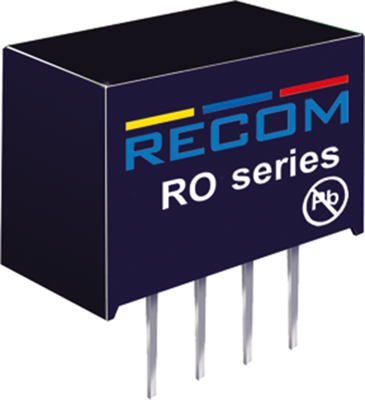

RO-1224S | RECOM
DC/DC converter, 12 VDC, 1 W, 1 output, 24 VDC, 85 % efficiency, RO-1224S
DC/DC converters, 1.0 W, type Recom RO.
1.0 W DC/DC converter, SIP4 package, one output, Insulation voltage: 1.0 kV. Input voltage range: ±10 %. Output voltage tolerance: ±5.0 %. Residual ripple: 100 mVpp. Insulation resistance: 10 Gohm. Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage, output voltage, output current): RO-1224S, 12 V, 24 V, 42 mA
Number of outputs | 1 | |
Output voltage DC | 24 VDC | |
Output current | 42 mA | |

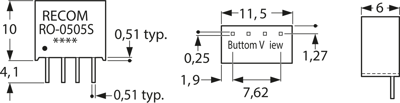

Design | SIP4 | |
Width | 6 mm | |
Input voltage AC | 12 VDC | |
Height | 10 mm | |
Isolation voltage | 1 kV | |
Length | 11.5 mm | |
Power | 1 W | |
efficiency | 85 % |
Country of origin | TW |
Customs tariff number | 85044095 |
Original Packaging | Bar with 42 pieces |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
