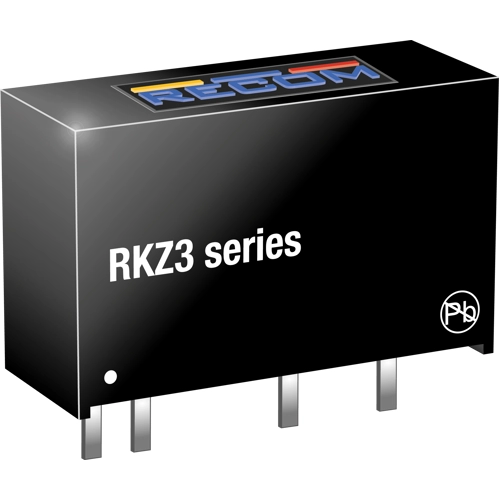

RKZ3-0505S | RECOM
DC converter, 5 VDC, 3 W, 1 output, 5 VDC, 85 % efficiency, RKZ3-0505S
Unit Price (€ / pc.)
10.0793 € *
Next delivery: 24 pcs. on 2026-03-03
Total Price:
10.08 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0793 €
10 pcs.
9.6271 €
50 pcs.
9.1868 €
100 pcs.
8.9369 €
*incl. VAT plus shipping costs
Subject to prior sale
LED driver, RKZ3-0505S, RECOM
The RKZ3-0505S 3W high isolation DC/DC converter is suitable for demanding industrial applications such as bus isolation, breaking ground loops, or separating multi-channel inputs which require more power than currently available in standard SIP7 isolated DC/DC converters. The RKZ3
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 600 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 5 VDC | |
| Power | 3 W | |
| efficiency | 85 % | |
| Design | through hole | |
| Isolation voltage | 3 kV | |
| Length | 19.6 mm | |
| Width | 7.5 mm | |
| Height | 12.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
