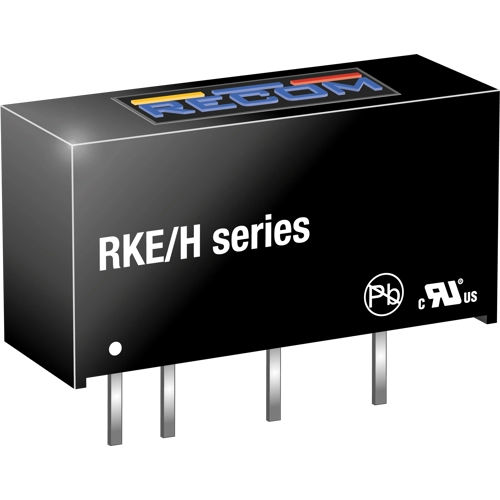

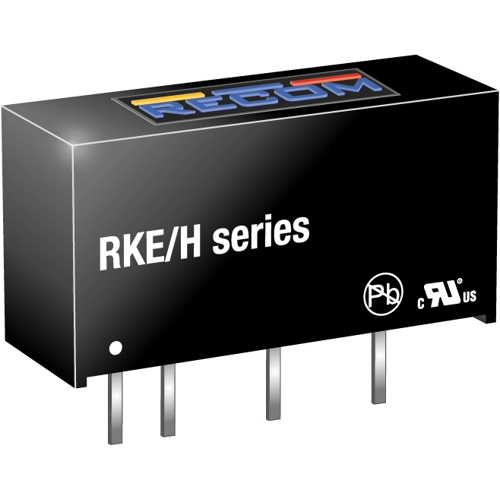

RKE-1205S/H | RECOM
DC converter, 12 VDC, 1 W, 1 output, 5 VDC, 80 % efficiency, RKE-1205S/H
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
5.2479 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
5.25 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2479 €
10 pcs.
4.9980 €
50 pcs.
4.7838 €
100 pcs.
4.6529 €
*incl. VAT plus shipping costs
Subject to prior sale
LED driver, RKE-1205S/H, RECOM
The RKE-1205S/H DC/DC converter is typically used in cost-sensitive general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 4kVDC isolation, an industrial operating temperature range of -40°C to +85°C without derating, and UL/EN certifications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 200 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 12 VDC | |
| Power | 1 W | |
| efficiency | 80 % | |
| Design | through hole | |
| Isolation voltage | 4 kV | |
| Length | 19.65 mm | |
| Width | 7.05 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
