REC7.5-2405SRW/H2/A/M | RECOM
DC converter, 18-36 VDC, 7.5 W, 1 output, 5 VDC, 82 % efficiency, REC7.5-2405SRW/H2/A/M
Unit Price (€ / pc.)
28.4410 € *
Available: 15 pcs.
Next delivery: 45 pcs. on 2025-07-22
Total Price:
28.44 € *
Price list
Quantity
Price per unit*
1 pcs.
28.4410 €
15 pcs.
27.0130 €
60 pcs.
23.7405 €
*incl. VAT plus shipping costs
Subject to prior sale

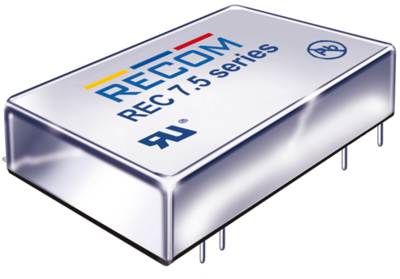

DC/DC Converter, REC7.5-2405SRW/H2/A/M, RECOM
The REC7.5-xxxxSRW/DRW-series offer single and dual regulated outputs in a DIP24 package with 1kV, 2kV or 3kV options and are suitable for higher power industrial or medical applications. Remote on/off control is possible with the /CTRL option and SMD pinning is offered with the /SMD option. The converters can deliver 140% rated power for short periods of time to cope with applications with large capacitive loads or high start up currents.
Features
- Approved for Medical Applications (/H)
- UL and EN Safety Approvals
- Full SMD design
- Remote Pin Option
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1.5 A | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 18-36 VDC | |
| Power | 7.5 W | |
| efficiency | 82 % | |
| Design | DIP24 | |
| Isolation voltage | 2 kV | |
| Length | 32 mm | |
| Width | 20.3 mm | |
| Height | 10.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
