REC20K-4805SZ | RECOM
DC converter, 18-75 VDC, 20 W, 1 output, 5 VDC, 88 % efficiency, REC20K-4805SZ
Unit Price (€ / pc.)
18.4450 € *
Available: 18 pcs.
Total Price:
18.45 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4450 €
9 pcs.
17.5525 €
18 pcs.
16.6481 €
36 pcs.
15.8151 €
*incl. VAT plus shipping costs
Subject to prior sale
AC/DC LED power supply, REC20K-4805SZ, RECOM

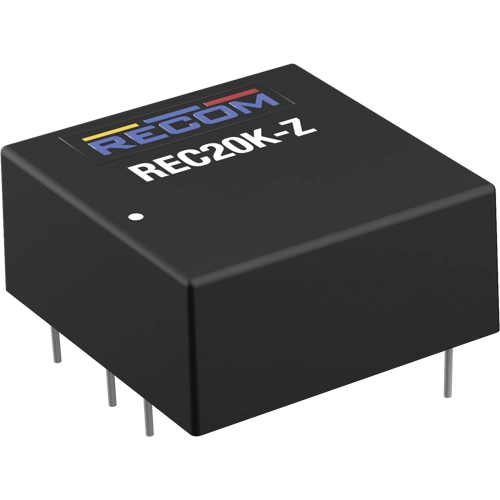

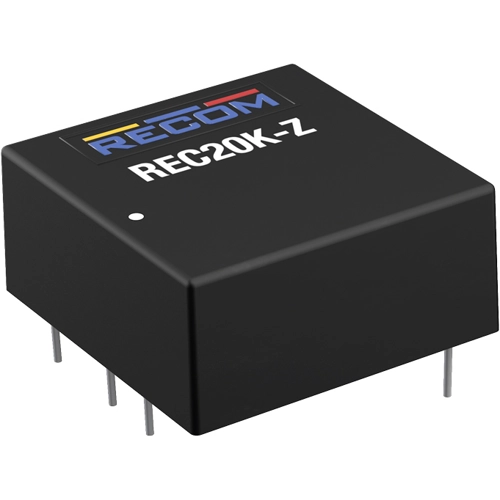

The REC20K-4805SZ is a high power density, wide input voltage range 20W DC/DC converter in an industry standard 1”x1” case size. Despite its small size, the REC20K converter is a fully specified device with output currents up to 5 amps, high efficiency, no minimum load, 2000VDC/1min isolation, tight regulation, and low ripple/noise figures. The output is also fully protected against short circuits, overcurrent, and overvoltage, and the single output version offers a ±10% trim range. This converter fits well in industrial applications where board space is at a premium.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 4000 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 18-75 VDC | |
| Power | 20 W | |
| efficiency | 88 % | |
| Design | through hole | |
| Isolation voltage | 2 kV | |
| Length | 25.4 mm | |
| Width | 25.4 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
