R05C1TF05S-CT | RECOM
1W DC/DC-Converter 'ECONOLINE' SMD 3kV reg
Unit Price (€ / pc.)
2.4990 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
2.50 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4990 €
5 pcs.
2.3681 €
*incl. VAT plus shipping costs
Subject to prior sale

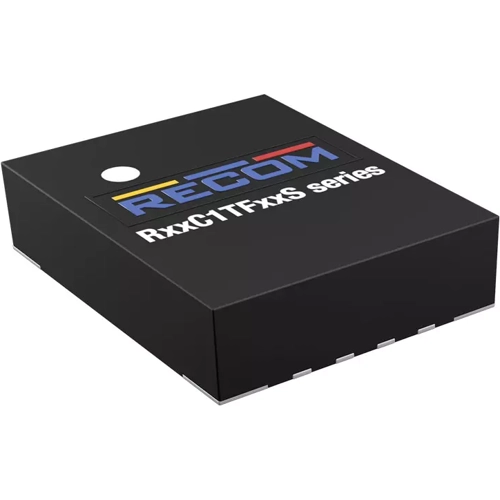

DC/DC converter, R05C1TF05S-CT, RECOM
The R05C1TF05S-CT product is the latest breakthrough in isolated DC/DC converters. With an ultra-compact 5 x 4mm SMD package and a low profile of just 1.18mm, it sets a new standard for size and performance in its class. Offering 3kVAC/1s isolation and a selectable 3.3V or 5V output, it's perfect for applications like COM port isolation, industrial automation, IoT, and sensor isolation. With a wide input range of 3V to 5.5V and an ambient temperature range up to 125°C with derating, it ensures reliability in diverse environments.
Features
- Low profile
- Integrated solution
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 200 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 5 VDC | |
| Power | 1 W | |
| efficiency | 50.5 % | |
| Design | surface mounting | |
| Isolation voltage | 3 kV | |
| Length | 5 mm | |
| Width | 4 mm | |
| Height | 1.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
