R-78B6.5-1.0 | RECOM
DC converter, 9-32 VDC, 6.5 W, 1 output, 6.5 VDC, 94 % efficiency, R-78B6.5-1.0
/500x500/dc-converter-9-32-vdc-6-5-w-1-output-6-5-vdc-94-efficiency-r-78b6-5-1-0.webp)
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.2094 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
12.21 € *
Price list
Quantity
Price per unit*
1 pcs.
12.2094 €
10 pcs.
11.6501 €
50 pcs.
11.1384 €
100 pcs.
10.8052 €
*incl. VAT plus shipping costs
Subject to prior sale

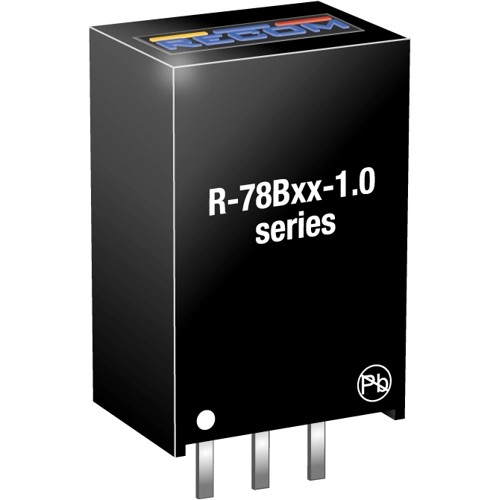

DC/DC converter, R-78B6.5-1.0, RECOM
The R-78B6.5-1.0 high efficiency switching regulator is ideally suited to replace a 78xx linear regulator and is pin compatible. The efficiency of up to 97% means that very little energy is wasted as heat, so there is no need for any heat sinks with their additional space and mounting costs. The L-Version with 90° pins allows direct replacement for laid-flat regulators where component height is at a premium. Low ripple and noise figures and a short circuit input current of typically only 10 mA round off the specifications of this versatile converter.
Features
- Wide input range
- Short circuit protection, thermal shutdown
- Low ripple and noise
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1000 mA | |
| Output voltage DC | 6.5 VDC | |
| Input voltage AC | 9-32 VDC | |
| Power | 6.5 W | |
| efficiency | 94 % | |
| Design | through hole | |
| Length | 11.5 mm | |
| Width | 8.5 mm | |
| Height | 17.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
