R-78B3.3-1.5 | RECOM

DC converter, 4.75-18 VDC, 4.95 W, 1 output, 3.3 VDC, 91 % efficiency, R-78B3.3-1.5

Order No.: 33C442
EAN: 4099891335205
MPN:
R-78B3.3-1.5
80099160
Series: R-78B-1.5

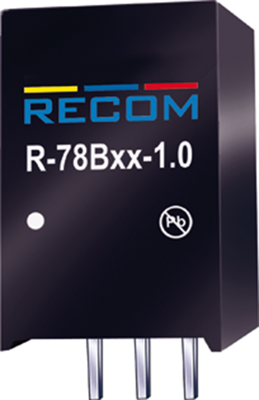

R-78B3.3-1.5 RECOM DC/DC Converters Image 1

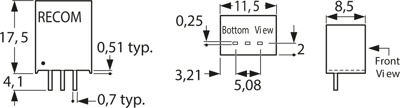

R-78B3.3-1.5 RECOM DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
14.2919 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
600.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
42 pcs.
14.2919 €

DC/DC converter, type Recom R-78B.

Switching mode regulator, pin compatible with LM78xx. Output voltage tolerance: typical/max. ±2.0/±3.0%. Operating temperatures: –40 to +85 °C.

Technical attributes (type, input voltage range, output voltage, output current, efficiency at min./max. input voltage): R-78B3.3-1.5, 4.75 to 18 V, 3.3 V, 1.5 A, 91/88 %

Technical specifications
Output voltage DC 3.3 VDC
Output current 1.5 A
Width 8.5 mm
Height 17.5 mm
Power 4.95 W
Length 11.5 mm
Design SIP3
Number of outputs 1
efficiency 91 %
Input voltage AC 4.75-18 VDC
Logistics
Country of origin TW
Customs tariff number 85044095
Original Packaging Bar with 42 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
