REFIN2U-S30/24 | RECOM
DC converter, 85-305 V, 30 W, 1 output, 24 VDC, REFIN2U-S30/24
Unit Price (€ / pc.)
19.6707 € *
Next delivery: 30 pcs. on 2026-06-16
Total Price:
19.67 € *
Price list
Quantity
Price per unit*
1 pcs.
19.6707 €
30 pcs.
17.7072 €
*incl. VAT plus shipping costs
Subject to prior sale

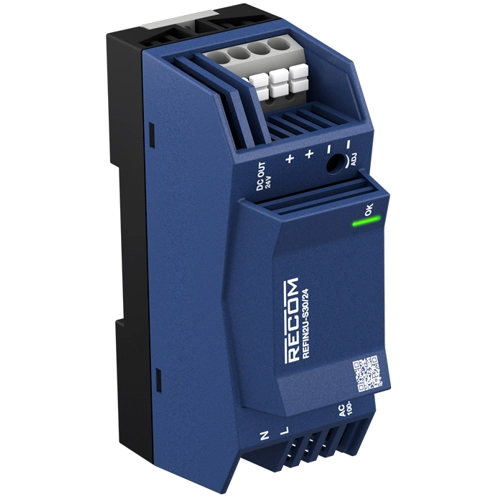

AC/DC Converter, REFIN2U-S30/24, RECOM
With a width of 2U and dimensions of 36 x 94 x 55 mm, the new REFIN2U-S30/24 supports power requirements of 30 watts. Spring-loaded push-in terminals for solid or stranded wires enable tool-free connections without ferrules. Rear mounting flaps allow direct mounting to the back of a wall in any orientation, even without a DIN rail.
Features
- Boost power up to 135W for 5s
- Push-In Connections
- CV/CC Constant voltage / current limited
- Audible noise suppression
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1250 mA | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 85-305 V | |
| Power | 30 W | |
| efficiency | 89 % | |
| Design | 2U step-shape | |
| Isolation voltage | 4 kV | |
| Length | 93.5 mm | |
| Width | 35.5 mm | |
| Height | 58.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
