659525-000 | Raychem
TE Connectivity/Raychem 659525-000
Order No.: 34P5812
EAN: 4099889714753
MPN:
659525-000
TXR54AC90-1204AIF
Unit Price (€ / pc.)
386.5596 € *
Available in 5 Days: 8 pcs. - if ordered today

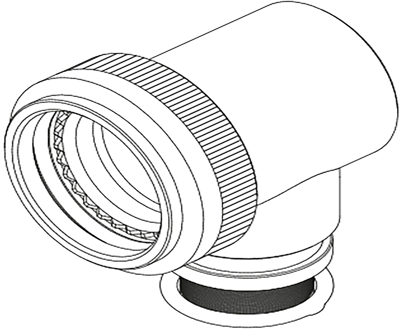

Backshell adapter, 659525-000, Raychem
The 659525-000 is a tinel lock backshell memory ring shrunk by the application of heat. This product is designed to terminate a braided cable shield and a heat shkrinkable lipped boot to a connector.
Features
- Low profile 360° screen termination
- Sealing and strain relief of backshell by heat shrink boot
- Heat shrink memory metal ring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | cable connection | |
| Assembly | cable assembly | |
| Cable diameter | 3.2 to 5.1 mm | |
| Orientation | straight | |
| Version | adapter | |
| Shell Material | aluminum |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
