506793-000 | Raychem
TE Connectivity/Raychem 506793-000
Order No.: 34P5750
EAN: 4099889714135
MPN:
506793-000
TXR54AB00-1005AI
Unit Price (€ / pc.)
290.0863 € *
Available in 5 Days: 150 pcs. - if ordered today

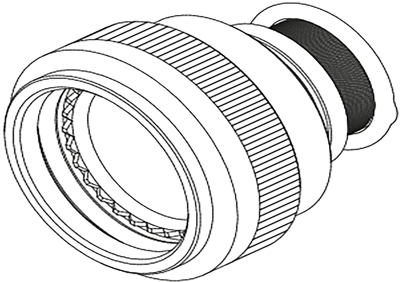

Ruggedized Backshell and Adapter, 506793-000, TE Connectivity
Termination Device Included: TR05AI, Adapter Angle: Straight, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 10, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 54, Adapter Entry Size: 5, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-7.9 mm, Cable Diameter Range: 4-6.4 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | aluminum | |
| Cable diameter | 4 to 6.4 mm | |
| Orientation | straight | |
| Version | adapter |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Cadmium |
| RoHS conform | Yes |
| SVHC free | No |
