NB25822001 | Raychem

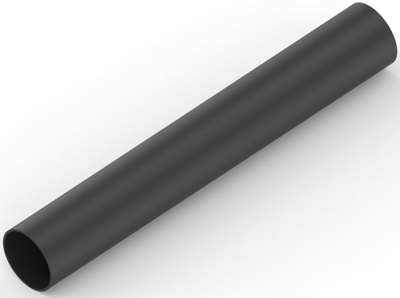

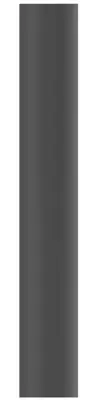

Heatshrink tubing, 3:1, (3.2/0.6 mm), polyolefine, black

Order No.: 72P2966
EAN: 4099891656577
MPN:
NB25822001
Series: SCL
Raychem
default L
front L
side L
back L
Image may differ
Unit Price (€ / pc.)
4.2602 € *
Available: 0 pcs.
Available in 5 Days: 500 pcs.
Leadtime: 1 Week **
Total Price:
4.26 € *
Price list
Quantity
Price per unit*
25 pcs.
4.2602 €
150 pcs.
3.5700 €
*incl. VAT plus shipping costs
**Subject to prior sale

Heat shrink tubing, NB25822001, Raychem

The NB25822001 is a heat-shrinkable tub with encapsulates components, splices, and terminations where moisture resistance and mechanical protection are required. Encapsulant melts and flows to fill surface irregularities of the substrate. While still hot, the tubing can be blocked to form a wire breakout.

Features

  • 3:1 shrink ratio
  • Rugged protection against abrasion, vibration, and flexing
  • Excellent strain relief and insulation of weak points
  • RoHS compliant
Technical specifications
Colour black
Inner diameter after shrinkage 0.6 mm
Inner diameter before shrinkage 3.2 mm
Length 1.22 m
Material polyolefine
max. operating temperature 110 °C
min. operating temperature -55 °C
Shrinking rate 3:1
Shrinking temperature 125 °C
Wall thickness 0.96 mm
Inch Size 1/8
Logistics
Country of origin CZ
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
