NB20384001 | Raychem

Heatshrink tubing, 2:1, (5.21/2.4 mm), PE, blue, NB20384001

Order No.: 72P2963
EAN: 4099891656546
MPN:
NB20384001
Series: VERSAFIT

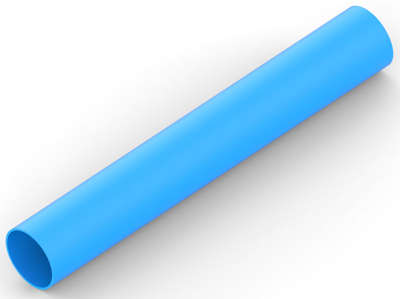

NB20384001 Raychem Heat Shrink Tubing Image 1

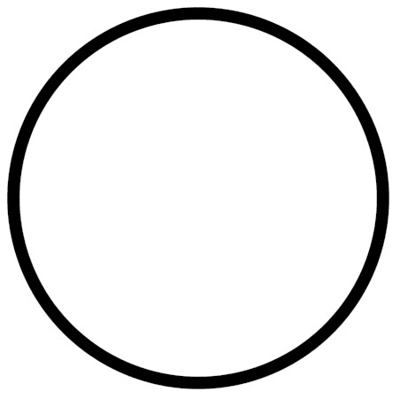

NB20384001 Raychem Heat Shrink Tubing Image 2

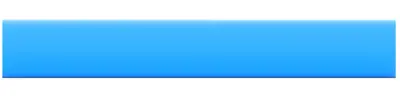

NB20384001 Raychem Heat Shrink Tubing Image 3

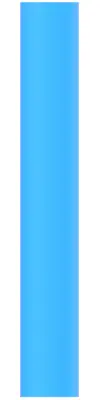

NB20384001 Raychem Heat Shrink Tubing Image 4
Image may differ
Unit Price (€ / mtr.)
2.0706 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
10.35 € *
Price list
Quantity
Price per unit*
5 mtr.
2.0706 €
10 mtr.
1.9159 €
25 mtr.
1.7850 €
50 mtr.
1.6184 €
*incl. VAT plus shipping costs
Subject to prior sale

Heat shrink tubing, NB20384001, Raychem

The NB20384001 is a heat-shrinkable tub that has a cost-effective choice for many commercial and military applications; electrically insulates and protects in-line components, disconnect terminals, and splices. Bundles wires for very flexible light-duty harnesses. This product's low shrink temperature reduces installation time and the risk of damage to temperature-sensitive components. Also has higher temperature rating, better thermal stability, and higher resistance to physical abuse than noncrosslinked materials.

Features

  • 2:1 shrink ratio
  • Very flexible: doesn’t easily wrinkle when bent
  • Highly flame-retardant
  • Hot stamps extremely well
  • RoHS compliant
Technical specifications
Filter Property Value
Inner diameter after shrinkage 2.4 mm
Material PE
Wall thickness 0.51 mm
min. operating temperature -55 °C
Shrinking rate 2:1
Inch Size 3/16
Shrinking temperature 70 °C
Colour blue
Inner diameter before shrinkage 5.21 mm
max. operating temperature 135 °C
Logistics
Property Value
Country of origin US
Customs tariff number 39269097
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
