5562734018 | Raychem

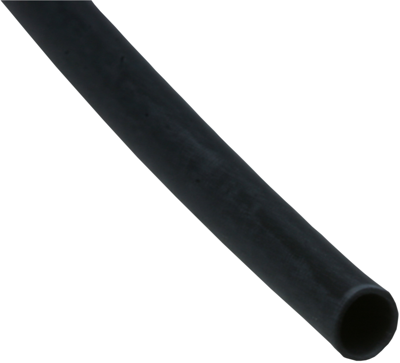

Heatshrink tubing, 2:1, (1.85/0.8 mm), polyolefine, cross-linked, black
Active
Product by Raychem at Bürklin Elektronik
Heatshrink tubing, type TE Connectivity/Raychem VERSAFIT-.
Highly flame-retardant, very flexible material on polyolefin base, good resistance against acids, bases and solvents. The tubing provides excellent component and splice protection. Ideal for bundling cables together to produce light-weight and ultra flexible cable harnesses
| Colour | black | |
| Inner diameter after shrinkage | 0.8 mm | |
| Inner diameter before shrinkage | 1.85 mm | |
| contains glue inside | No | |
| Material | polyolefine, cross-linked | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 70 °C | |
| Wall thickness | 0.43 mm |
| Country of origin | US |
| Customs tariff number | 39173200 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
