CB5355-000 | Raychem
Heatshrink tubing, 3:1, (27.94/9.52 mm), PE, red, CB5355-000
Unit Price (€ / pc.)
42.7210 € *
Available in 5 Days: 192 pcs. - if ordered today
Total Price:
213.61 € *
Price list
Quantity
Price per unit*
5 pcs.
42.7210 €
16 pcs.
40.6742 €
*incl. VAT plus shipping costs
Subject to prior sale

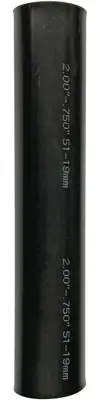

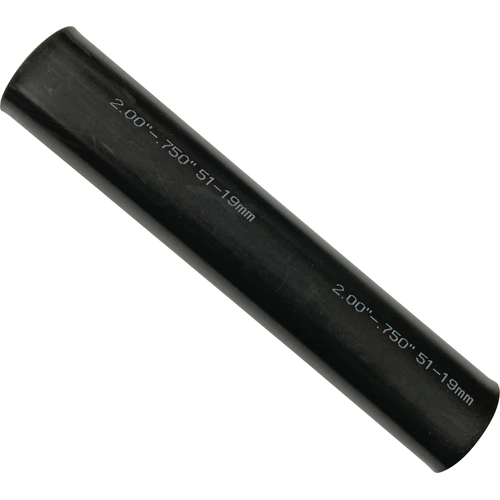

Heat shrink tubing, CB5355-000, Raychem
The CB5355-000 provides a simple, positive splice-sealing method that offers protection under adverse environmental conditions. Tubing supplied with standard sealant provides water sealing and environmental protection in wet or underground applications. This product's polymer tubing has excellent insulating, abrasion-resistance, and strain-relief properties.
Features
- Thick adhesive liner forms an effective barrier against fluids and moisture
- Expansion ratios as high as 3:1
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking rate | 3:1 | |
| Inner diameter before shrinkage | 27.94 mm | |
| Inner diameter after shrinkage | 9.52 mm | |
| Length | 1.219 m | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 110 °C | |
| Wall thickness | 3.05 mm | |
| Colour | red | |
| Material | PE | |
| Shrinking temperature | 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
