5885930001 | Raychem
Heatshrink tubing, 3:1, (6/2 mm), polyolefine, white
Order No.: 35P2809
EAN: 4099891271824
MPN:
5885930001
TRSA-1019/E/1/9
Unit Price (€ / mtr.)
0.1856 € *
Available: 0 mtr.
Leadtime: 26 Weeks **

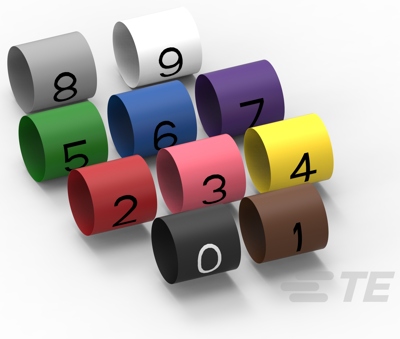

Heat shrink tubing, RNF-3000-18/6-2-SP, Raychem
RNF-3000-18/6-2-SP is a flexible, high-shrink-ratio, flame-retardant, general purpose, polyolefin tubing. This product is used for insulation and strain relief of wire terminations and electrical connections. Also is suitable for light-duty harnessing, jacketing, and identification of wires, cables, and electrical and electronic components.
Features
- 3:1 Shrink ratio
- Excellent physical chemical
- Flame-retardant
- RoHS compliant
Technical specifications
| Colour | white | |
| Inner diameter after shrinkage | 2 mm | |
| Inner diameter before shrinkage | 6 mm | |
| contains glue inside | No | |
| Material | polyolefine | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 3:1 | |
| Shrinking temperature | 80 °C | |
| Wall thickness | 0.1 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
