5058784018 | Raychem

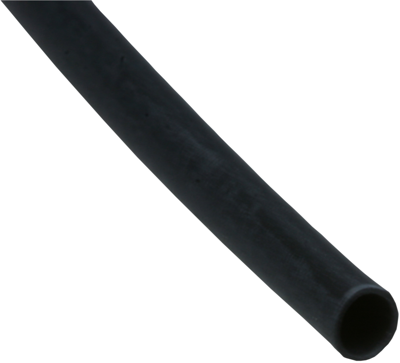

Heatshrink tubing, 2:1, (13.72/6.4 mm), PE, crosslinked, black, 5058784018
Unit Price (€ / mtr.)
4.4863 € *
Available: 21 mtr.
Total Price:
4.49 € *
Price list
Quantity
Price per unit*
1 mtr.
4.4863 €
10 mtr.
4.2007 €
45 mtr.
3.9270 €
135 mtr.
3.6414 €
450 mtr.
3.3677 €
*incl. VAT plus shipping costs
Subject to prior sale
Heatshrink tubing, type TE Connectivity/Raychem VERSAFIT-.
Highly flame-retardant, very flexible material on polyolefin base, good resistance against acids, bases and solvents. The tubing provides excellent component and splice protection. Ideal for bundling cables together to produce light-weight and ultra flexible cable harnesses
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contains glue inside | No | |
| Inner diameter before shrinkage | 13.72 mm | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C | |
| Colour | black | |
| Inner diameter after shrinkage | 6.4 mm | |
| Material | PE, crosslinked | |
| Wall thickness | 0.64 mm | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Original Packaging | Reel with 45 meters |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
