5053102016 | Raychem
Heatshrink tubing, 2:1, (6.4/3.2 mm), PE, crosslinked, red, 5053102016
Unit Price (€ / pc.)
3.4272 € *
Available in 5 Days: 238 pcs. - if ordered today
Total Price:
3.43 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4272 €
10 pcs.
3.1892 €
25 pcs.
2.9750 €
50 pcs.
2.7013 €
*incl. VAT plus shipping costs
Subject to prior sale

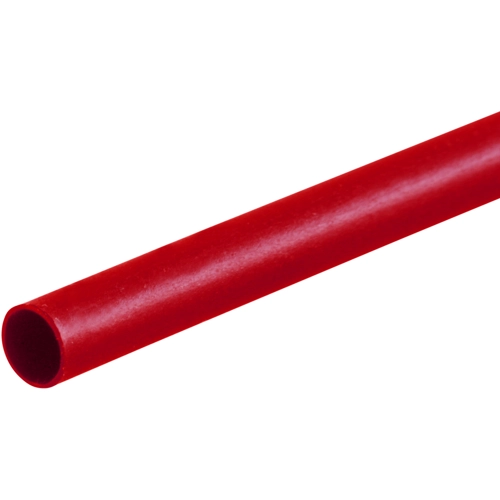

Heat-shrinkable tubing, 5053102016, RAYCHEM
This polyolefin tubing is designed to provide superior mechanical, thermal and fluid-resistance performance in demanding enviroments.
Widely used to provide insulation and strain relief of wire terminations and connections.
Features
- Superior abrasion and solvent resistance
- Excellent physical chemical
- Highly flexible
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking rate | 2:1 | |
| Inner diameter before shrinkage | 6.4 mm | |
| Inner diameter after shrinkage | 3.2 mm | |
| Length | 1.2 m | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 135 °C | |
| contains glue inside | No | |
| Wall thickness | 0.64 mm | |
| Colour | red | |
| Material | PE, crosslinked | |
| Shrinking temperature | 95 °C | |
| Inch Size | 1/4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
