5052982040 | Raychem

Heatshrink tubing, 2:1, (2.4/1.2 mm), PE, crosslinked, white, 5052982040

Order No.: 35P3106
EAN: 4099891273484
MPN:
5052982040
RNF-100-3/32-9-STK
Series: RNF-100
5052982040 Raychem Heat Shrink Tubing

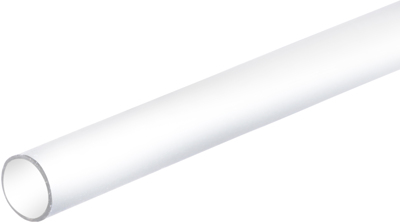

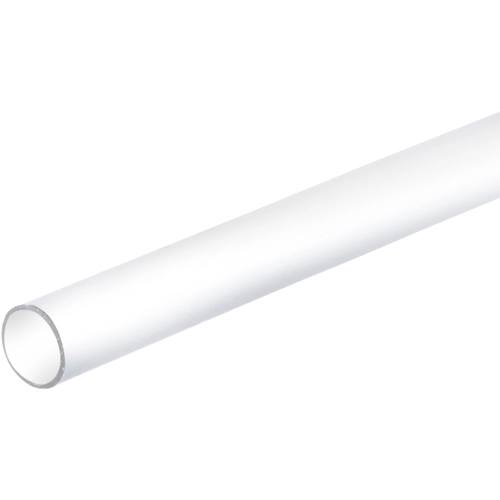

Image may differ
Unit Price (€ / mtr.)
2.0825 € *
Available in 5 Days: 420 mtr. - if ordered today
Total Price:
2.08 € *
Price list
Quantity
Price per unit*
1 mtr.
2.0825 €
10 mtr.
1.9397 €
25 mtr.
1.8088 €
50 mtr.
1.6422 €
*incl. VAT plus shipping costs
Subject to prior sale

Heat-shrinkable tubing, 5052982040, RAYCHEM

This polyolefin tubing is designed to provide superior mechanical, thermal and fluid-resistance performance in demanding enviroments.

Widely used to provide insulation and strain relief of wire terminations and connections.

Features

  • Superior abrasion and solvent resistance
  • Excellent physical chemical
  • Highly flexible
  • Flame-retardant
Technical specifications
Filter Property Value
Shrinking rate 2:1
Inner diameter before shrinkage 2.4 mm
Inner diameter after shrinkage 1.2 mm
Length 1.2 m
min. operating temperature -55 °C
max. operating temperature 135 °C
contains glue inside No
Wall thickness 0.51 mm
Colour white
Material PE, crosslinked
Shrinking temperature 95 °C
Inch Size 3/32
Logistics
Property Value
Country of origin CN
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
