9-1768043-5 | Raychem

POM cable maker, imprint "symbol: GND", (L) 3.15 mm, max. bundle Ø 3.5 mm, white, 9-1768043-5

Order No.: 14L3694
EAN: 4099891207670
MPN:
9-1768043-5
STD06W-EARTH
Series: STD

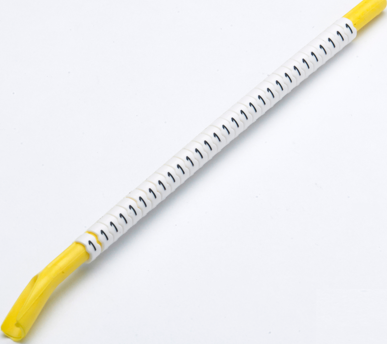

9-1768043-5 Raychem Cable Markers Image 1

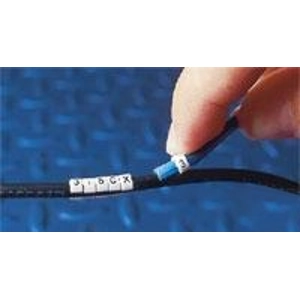

9-1768043-5 Raychem Cable Markers Image 2

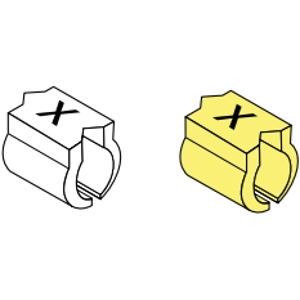

9-1768043-5 Raychem Cable Markers Image 3
Image may differ
Unit Price (€ / pck.)
1.8564 € *
Available in 5 Days: 1,363 pck. - if ordered today
Total Price:
1.86 € *
Price list
Quantity
Price per unit*
1 pck.
1.8564 €
10 pck.
1.7136 €
25 pck.
1.6065 €
50 pck.
1.4280 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable tags, type STD.

Supplied in units of 30 items on a dispenser rod which is used for sliding the tag onto wires or cables. The molded black legend is highly enduring; Background color of the tag: white.

For cables from 2.6 to 3.5 mm, on red dispenser rod, type STD 06.

Technical attributes (type, legend): STD 06, grounding symbol

Technical specifications
Filter Property Value
Version cable maker
Imprint symbol: GND
Markable No
max. Bundle diameter 3.5 mm
Colour white
Material POM
Font color black
Length 3.15 mm
Logistics
Property Value
Customs tariff number 39269097
Original Packaging Bar with 30 pieces
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
