769665-000 | Raychem

Butt connector with heat shrink insulation, 0.38 mm², AWG 22, transparent blue, 19.1 mm, 769665-000

Order No.: 34P3775
EAN: 4099889608175
MPN:
769665-000
ST63-5-55-22-9

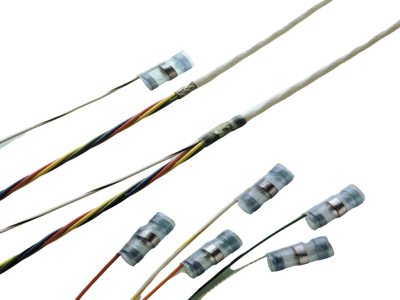

769665-000 Raychem Butt splices Image 1

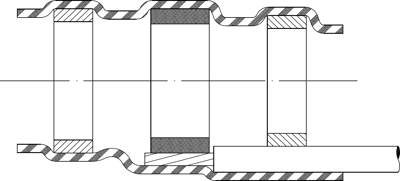

769665-000 Raychem Butt splices Image 2
Image may differ
Unit Price (€ / pc.)
3.5462 € *
Standard delivery time from the manufacturer is: 41 Weeks
Total Price:
5,673.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
1600 pcs.
3.5462 €

SolderSleeve Shield Terminator, 769665-000, Raychem

Temperature Indicator: None, SolderSleeve Shield Terminator Product Type: Shield Terminator, Pre-Installed Lead Type: Yes, Pre-Installed Lead: Yes, Lead Stranding: Stranded, Termination Method: Solder, Jacket Outside Diameter: 7 mm, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): , SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 4.3 mm, SolderSleeve Shield Terminator Operating Temperature (Max): 150 °C, Resistance Properties: Immersion Protection, Wire Temperature (Max): 150 °C, Government Qualified: No

Technical specifications
Filter Property Value
Version butt connector
Cable cross-section 0.38 mm²
AWG cross-section AWG 22
Isolated Yes
Colour transparent blue
Material PVDF
shrinkable tubing Yes
Length 19.1 mm
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366910
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform No
