563049-000 | Raychem
Butt connector with heat shrink insulation, 0.61 mm², AWG 20, transparent blue, 16.5 mm
Order No.: 34P3764
EAN: 4099889608069
MPN:
563049-000
ST63-3-55-20-90
Unit Price (€ / pc.)
3.5105 € *
Available: 0 pcs.
Available in 5 Days: 659 pcs.
Leadtime: 1 Week **
Total Price:
3.51 € *
Price list
Quantity
Price per unit*
25 pcs.
3.5105 €
150 pcs.
2.8203 €
*incl. VAT plus shipping costs
**Subject to prior sale

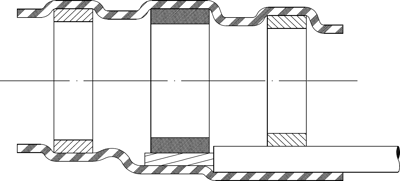

SolderSleeve Shield Terminator, 563049-000, Raychem
Temperature Indicator: None, SolderSleeve Shield Terminator Product Type: Shield Terminator, Pre-Installed Lead Type: AS22759/32, Pre-Installed Lead: Yes, Lead Stranding: Stranded, Termination Method: Solder, Jacket Outside Diameter: 4.3 mm, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): 4.3 mm, SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 2.15 mm, SolderSleeve Shield Terminator Operating Temperature (Max): 150 °C, Resistance Properties: Immersion Protection, Wire Temperature (Max): 150 °C, MIL/NAS Specification (MIL-S-83519, NAS-1747): RT-1404
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 20 | |
| Colour | transparent blue | |
| Isolated | Yes | |
| Length | 16.5 mm | |
| Cable cross-section | 0.61 mm² | |
| Material | polyvinylidene fluoride | |
| shrinkable tubing | Yes |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
