680864-000 | Raychem

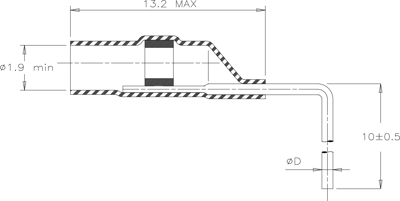

PCB terminator with heat shrink insulation, 0.5-0.14 mm², AWG 26 to 20, transparent blue, 13.2 mm
Splices, 680864 - 000, Raychem
Splice Product Type: PCB Terminator, Sealable: No, Splice Type: PINPAK, Splice Wire/Cable Type: Silver - Plated,Tin - Plated, Insulated: Yes, Insulation Material: Heat Shrink Radiation - Crosslinked Modified Polyvinylidene, Terminal & Splice Type: Splice, Termination Method: Solder, Housing Material: Polyvinylidene, Inside Diameter (Recovered): 0.5 mm, Wire Size: 20 - 26 AWG, Wire Size: 0.5 - 0.14 mm², Splice Wire Insulation Diameter (Max): 1.9 mm, Splice Overall Length: 13.2 mm, Cable Temperature Rating: 125 °C, Operating Temperature Range: - 55 - 150 °C, Heavy Duty: No, Government Qualified Splice: No, Splice Packaging Method: Bag
| Version | PCB terminator | |
| AWG cross-section | AWG 26 to 20 | |
| Colour | transparent blue | |
| Isolated | Yes | |
| Length | 13.2 mm | |
| Cable cross-section | 0.5-0.14 mm² | |
| Material | polyvinylidene fluoride | |
| shrinkable tubing | Yes |
| Country of origin | TW |
| Customs tariff number | 85366910 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
