650083-000 | Raychem

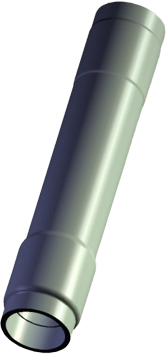

Butt connector with heat shrink insulation, 1.21-2.94 mm², AWG 16 to 12, transparent yellow, 29.21 mm, 650083-000
Unit Price (€ / pc.)
6.1880 € *
Available in 5 Days: 1,149 pcs. - if ordered today
Splice, 650083 - 000, TE Connectivity
Splice Product Type: Splice, Sealable: Yes, Splice Type: In - Line Splice, Serrated: No, Splice Accessory Type: Splice, Number of Serrations: 0. Insulation Material: Modified Polyvinylidene, Splice Features: Splice Kit, Splice Material: Tin - Plated Copper, Terminal & Splice Type: Splice, Wire Size: 16 - 12 AWG, Wire Size: 1.21 - 2.94 mm², Barrel Inside Diameter: 2.54 mm, Wire Size: 2426 - 5874 CMA, Splice Overall Length: 29.21 mm, Operating Temperature Range: - 55 - 150 °C, Heavy Duty: No, Government Qualified Splice: No, Splice Packaging Method: Bag/Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 1.21-2.94 mm² | |
| AWG cross-section | AWG 16 to 12 | |
| Isolated | Yes | |
| Colour | transparent yellow | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 29.21 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
