650082-000 | Raychem

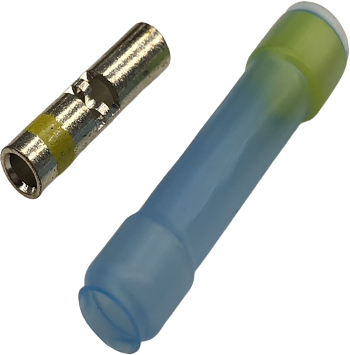

Butt connector with heat shrink insulation, 0.61-1.21 mm², AWG 20 to 16, transparent blue, 29.21 mm
Unit Price (€ / pc.)
3.2487 € *
Available: 0 pcs.
Available in 5 Days: 70 pcs.
Leadtime: 1 Week **
Total Price:
3.25 € *
Price list
Quantity
Price per unit*
30 pcs.
3.2487 €
150 pcs.
3.1773 €
*incl. VAT plus shipping costs
**Subject to prior sale
Splice, 650082 - 000, TE Connectivity
Splice Product Type: Splice, Sealable: Yes, Splice Type: In - Line Splice, Serrated: No, Splice Accessory Type: Splice, Number of Serrations: 0. Insulation Material: Modified Polyvinylidene, Splice Features: Splice Kit, Splice Material: Tin - Plated Copper, Terminal & Splice Type: Splice, Wire Size: 20 - 16 AWG, Wire Size: 0.61 - 1.21 mm², Barrel Inside Diameter: 1.69 mm, Wire Size: 1216 - 2426 CMA, Splice Overall Length: 29.21 mm, Operating Temperature Range: - 55 - 150 °C, Heavy Duty: No, Government Qualified Splice: No, Splice Packaging Method: Bag/Box
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 20 to 16 | |
| Colour | transparent blue | |
| Isolated | Yes | |
| Length | 29.21 mm | |
| Cable cross-section | 0.61-1.21 mm² | |
| Material | polyvinylidene fluoride | |
| shrinkable tubing | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
