650074-000 | Raychem

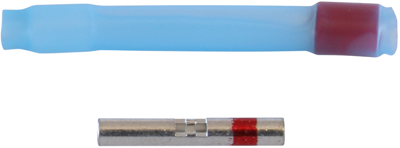

Butt connector with heat shrink insulation, 0.15-0.75 mm², AWG 26 to 20, transparent blue, 29.21 mm, 650074-000
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.6180 € *
Next delivery: 52 pcs. on 2026-07-08
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6180 €
10 pcs.
2.4038 €
50 pcs.
2.0944 €
100 pcs.
1.9397 €
500 pcs.
1.7850 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector, Splice, 650074 - 000, Raychem
Splice, In - Line Splice, Insulated Wire, Tin - Plated Copper, 304 - 1216 CMA
Technical Data
- Material: PVDF
- Length: 27.94 mm
- Insulated: Yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 0.15-0.75 mm² | |
| AWG cross-section | AWG 26 to 20 | |
| Isolated | Yes | |
| Colour | transparent blue | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 29.21 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
