421006-000 | Raychem

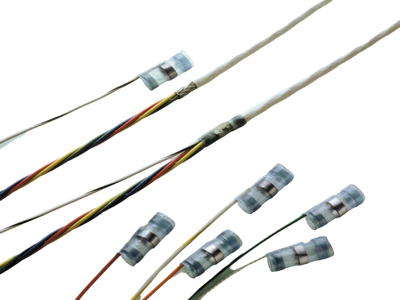

Butt connector with heat shrink insulation, 0.61 mm², AWG 20, transparent blue, 19.1 mm, 421006-000
Order No.: 34P3774
EAN: 4099889608168
MPN:
421006-000
ST63-5-55-20-90
Unit Price (€ / pc.)
3.5581 € *
Standard delivery time from the manufacturer is: 46 Weeks

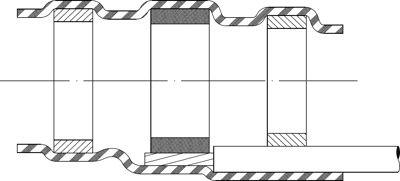

Shield Terminator, 421006-000, TE Connectivity
Splice Type: Shield Terminator, SolderSleeve Shield Terminator Product Type: Shield Terminator, Pre-Installed Lead Type: Yes, Pre-Installed Lead: Yes, Lead Stranding: Stranded, Termination Method: Solder, Jacket Outside Diameter: 7 mm, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): , SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 4.3 mm, SolderSleeve Shield Terminator Operating Temperature (Max): 150 °C, Resistance Properties: Immersion Protection, Wire Temperature (Max): 150 °C, Government Qualified: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Colour | transparent blue | |
| shrinkable tubing | Yes | |
| Cable cross-section | 0.61 mm² | |
| AWG cross-section | AWG 20 | |
| Material | fluoropolymer | |
| Length | 19.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | No |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
