068037-000 | Raychem

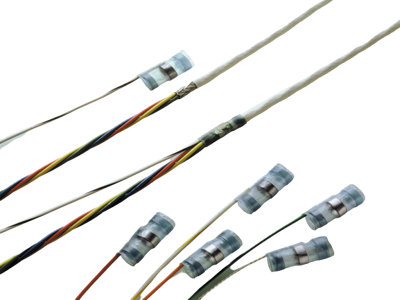

Butt connector with heat shrink insulation, 0.25 mm², AWG 24, transparent blue, 16.5 mm, 068037-000
Order No.: 34P3761
EAN: 4099889608038
MPN:
068037-000
ST63-2-55-24-9
Unit Price (€ / pc.)
6.8663 € *
Available in 5 Days: 520 pcs. - if ordered today
Total Price:
6.87 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8663 €
10 pcs.
6.3189 €
50 pcs.
5.6882 €
100 pcs.
5.1170 €
*incl. VAT plus shipping costs
Subject to prior sale
Splices, 068037 - 000, Raychem

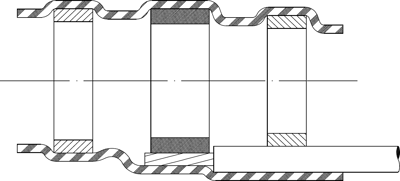

Splice Product Type: SolderSleeve, Sealable: Yes, Splice Type: Shield Terminator, Insulated: Yes, Splice Color: White, Terminal & Splice Type: Splice, Wire Size: 24 AWG, Wire Size: 0.25 mm², Splice Wire Insulation Diameter (Max): 2.65 mm, Splice Overall Length: 16.5 mm, Operating Temperature Range: - 55 - 150 °C, Heavy Duty: No, Government Qualified Splice: No, Splice Packaging Method: Bag
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 0.25 mm² | |
| AWG cross-section | AWG 24 | |
| Isolated | Yes | |
| Colour | transparent blue | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 16.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | No |
