063749-000 | Raychem

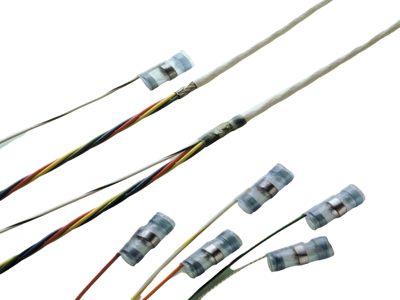

Butt connector with heat shrink insulation, 0.24 mm², AWG 24, transparent blue, 16.5 mm, 063749-000
Order No.: 34P3762
EAN: 4099889608045
MPN:
063749-000
ST63-2-55-24-90
Unit Price (€ / pc.)
3.7009 € *
Standard delivery time from the manufacturer is: 44 Weeks

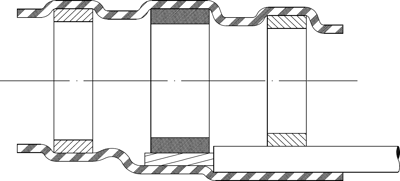

Shield Terminator, 063749-000, TE Connectivity
Temperature Indicator: None, SolderSleeve Shield Terminator Product Type: Shield Terminator, Pre-Installed Lead Type: Yes, Pre-Installed Lead: Yes, Lead Stranding: Stranded, Termination Method: Solder, Jacket Outside Diameter: 2.65 mm, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): 2.63 mm, SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 1.4 mm, SolderSleeve Shield Terminator Operating Temperature (Max): 150 °C, Resistance Properties: Immersion Protection, Wire Temperature (Max): 150 °C, Government Qualified: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| shrinkable tubing | Yes | |
| Material | PVDF | |
| Colour | transparent blue | |
| AWG cross-section | AWG 24 | |
| Version | butt connector | |
| Length | 16.5 mm | |
| Cable cross-section | 0.24 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | No |
