019601-000 | Raychem

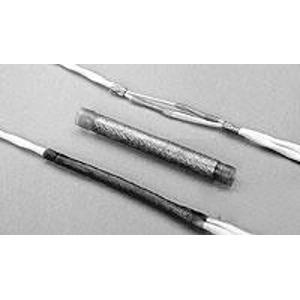

Butt connector with heat shrink insulation, transparent blue, 108 mm, 019601-000
Order No.: 34P2270
EAN: 4099889604863
MPN:
019601-000
D-155-0975
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
33.0939 € *
Available in 12 Days: 70 pcs. - if ordered today
Splices, 019601 - 000, Raychem
Splice Product Type: SolderShield Splice, Sealable: Yes, Splice Type: In - Line Splice, Splice Wire/Cable Type: Multi - Conductor, Insulated: Yes, Number of Conductors: Multi - Conductor, Plating Material: Tin/Silver/Nickel, Terminal & Splice Type: Splice, Splice Wire Insulation Diameter (Max): 9 mm, Splice Overall Length: 108 mm, Insulation Requirement: Fully Insulated, Operating Temperature Range: - 55 - 150 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Isolated | Yes | |
| Colour | transparent blue | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 108 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | No |
| Substance description | Lead |
| SVHC free | No |
