1.14.108.606/0000 | RAFI

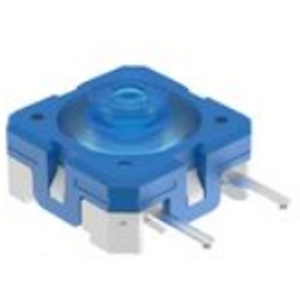

Name: Short-stroke pushbutton, 1 Form A (N/O), 0.1 A/35 V, unlit , actuator (blue), 4.8 N, THT
Brand: RAFI
SKU: 13G8043
Price: 2.12 EUR
Availability: InStock

Short-stroke pushbutton, 1 Form A (N/O), 0.1 A/35 V, unlit , actuator (blue), 4.8 N, THT

Order No.: 13G8043

EAN: 4099891621674

MPN:

1.14.108.606/0000

Series: RACON 8 ST

Image may differ

Key Specification:

Latching switching function 1 Form A (N/O)

Breaking capacity 0.1 A/35 V

illuminated No

Actuator colour blue

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.1182 € *

Available: 120 pcs.

Leadtime: 11 Weeks **

Total Price:

2.12 € *

Price list

Quantity

Price per unit*

1 pcs.

2.1182 €

60 pcs.

1.7850 €

120 pcs.

1.7255 €

240 pcs.

1.6541 €

1020 pcs.

1.5232 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Tactile switch, 1.14.108.606/0000, RAFI

Features

Gold contacts, reliable switching with low currents
Special tactile feedback
Different operating forces
Variable overall heights due to plunger

Applications

Measurement-control-regulation
Mechanical and system engineering
Automotive
Electro-medical

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85365080
Original Packaging	Bar with 60 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
