1.14.002.101/0000 | RAFI

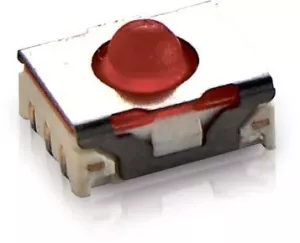

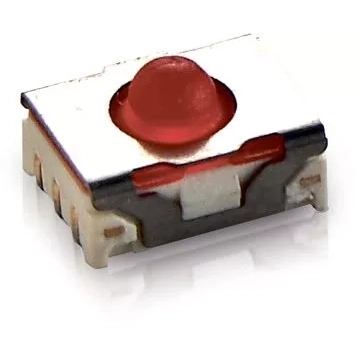

Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 3 N, SMD

RAFI
default L
default S
Images may differ
Order No.:  13G2050
Manufacturer:  RAFI
Manufacturer SKU: 1.14.002.101/0000
Manufacturer series:  MICON 5
EAN: 4099889205787
about the green icons

Product highlights

  • Excellent tactile and acoustic feedback

  • Suitable for the most important soldering techniques

  • Gold contacts, reliable switching with low currents

Total price
( 1.5470 € * / pcs.)
1.55 €
Available: 2,966 pcs.
Leadtime
Quantity
Price per unit*
1 pcs.
1.5470 €
25 pcs.
1.3209 €
100 pcs.
1.2138 €
250 pcs.
1.1543 €
2100 pcs.
0.9877 €
*incl. VAT plus shipping costs
Show 12 variants
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description
MICON 5 tactile switches offer extreme switch reliability, with a very small space requirement. They can be arranged individually, in rows or as key blocks. For use beneath overlays, we recommend combining the MICON 5 key switches with plungers. The tactile switches are suitable for the most important soldering processes such as reflow soldering. Switching voltage: min. 20 mV, max. 35 V, switching current: min. 0.01 mA, max. 100 mA, switching capacity: max. 1.0 W, dielectric strength: 250 V, actuating force: 3.0 N, switching travel: 0.7 mm, contact material: gold, contact system: snap-action contact, connection on rear: SMT, installation height: 3.85 mm, operating temperature: -40 °C to 90 °C.
Technical specifications
Connection SMD
illuminated No
actuating force 3 N
Width 5.1 mm
Actuator colour red
Height 3.85 mm
Contact material gold-plated
Length 6.4 mm
Latching switching function Form A (N/O)
Breaking capacity 100 mA/35 V
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85365080
Original Packaging Reel with 2,100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Breaking capacity
Actuator colour
Latching switching function
actuating force
Height
Unit
Connection
Width
Unit
Length
Unit
Contact material
illuminated
Search results: 1 item in 12 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Breaking capacity
Actuator colour
Latching switching function
actuating force
Height
Connection
Width
Length
Contact material
illuminated
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 5.5 N, SMD
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 5.5 N, SMD
Order No.:
 13G2051
Manufacturer:
 RAFI
Manufacturer SKU:
 1.14.002.111/0000
1.65 € *
1 pcs.
1.6541 €
25 pcs.
1.4042 €
100 pcs.
1.2971 €
250 pcs.
1.2376 €
2100 pcs.
1.0472 €
Available: 816 pcs.
Leadtime
100 mA/35 V
red
Form A (N/O)
5.5 N
3.85 mm
SMD
5.1 mm
6.4 mm
gold-plated
No
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 3 N, SMD
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 3 N, SMD
Order No.:
 13G2050
Manufacturer:
 RAFI
Manufacturer SKU:
 1.14.002.101/0000
1.55 € *
1 pcs.
1.5470 €
25 pcs.
1.3209 €
100 pcs.
1.2138 €
250 pcs.
1.1543 €
2100 pcs.
0.9877 €
Available: 2,966 pcs.
Leadtime
100 mA/35 V
red
Form A (N/O)
3 N
3.85 mm
SMD
5.1 mm
6.4 mm
gold-plated
No
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 8 N, SMD
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 8 N, SMD
Order No.:
 13G2049
Manufacturer:
 RAFI
Manufacturer SKU:
 1.14.002.011/0000
1.65 € *
1 pcs.
1.6541 €
25 pcs.
1.4042 €
100 pcs.
1.2971 €
250 pcs.
1.2376 €
2100 pcs.
1.0472 €
Available: 938 pcs.
Leadtime
100 mA/35 V
red
Form A (N/O)
8 N
3.85 mm
SMD
5.1 mm
6.4 mm
gold-plated
No
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (black, L 1.4 mm), 3 N, SMD
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (black, L 1.4 mm), 3 N, SMD
Order No.:
 13G2047
Manufacturer:
 RAFI
Manufacturer SKU:
 1.14.002.103/0000
1.55 € *
1 pcs.
1.5470 €
25 pcs.
1.3209 €
100 pcs.
1.2138 €
250 pcs.
1.1543 €
2100 pcs.
0.9877 €
Available: 814 pcs.
Next delivery: 2,100 pcs. on 2023-10-27
Leadtime
100 mA/35 V
black
Form A (N/O)
3 N
3.45 mm
SMD
5.1 mm
6.4 mm
gold-plated
No
Short-stroke pushbutton, 1 Form A (N/O), 0.1 A/35 V, unlit , actuator (red, L 1.4 mm), 8 N, THT
Short-stroke pushbutton, 1 Form A (N/O), 0.1 A/35 V, unlit , actuator (red, L 1.4 mm), 8 N, THT
Order No.:
 13G2058
Manufacturer:
 RAFI
Manufacturer SKU:
 1.14.002.116/0000
2.07 € *
1 pcs.
2.0706 €
25 pcs.
1.7612 €
102 pcs.
1.6303 €
204 pcs.
1.5589 €
816 pcs.
1.4280 €
Available: 401 pcs.
Leadtime
0.1 A/35 V
red
1 Form A (N/O)
8 N
3.85 mm
THT
5.1 mm
6.4 mm
gold-plated
No
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 1.5 N, SMD
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 1.5 N, SMD
Order No.:
 13G2053
Manufacturer:
 RAFI
Manufacturer SKU:
 1.14.002.201/0000
1.55 € *
1 pcs.
1.5470 €
25 pcs.
1.3209 €
100 pcs.
1.2138 €
250 pcs.
1.1543 €
2100 pcs.
0.9877 €
Available: 1,305 pcs.
Leadtime
100 mA/35 V
red
Form A (N/O)
1.5 N
3.85 mm
SMD
5.1 mm
6.4 mm
gold-plated
No
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 3.6 N, THT
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 3.6 N, THT
Order No.:
 13G2056
Manufacturer:
 RAFI
Manufacturer SKU:
 1.14.002.006/0000
1.90 € *
1 pcs.
1.9040 €
25 pcs.
1.6184 €
102 pcs.
1.4994 €
204 pcs.
1.4280 €
816 pcs.
1.3090 €
Available: 90 pcs.
Leadtime
100 mA/35 V
red
Form A (N/O)
3.6 N
3.85 mm
THT
5.1 mm
6.4 mm
gold-plated
No
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (black, L 1 mm), 3.6 N, SMD
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (black, L 1 mm), 3.6 N, SMD
Order No.:
 13G2046
Manufacturer:
 RAFI
Manufacturer SKU:
 1.14.002.003/0000
1.55 € *
1 pcs.
1.5470 €
25 pcs.
1.3209 €
100 pcs.
1.2138 €
250 pcs.
1.1543 €
2100 pcs.
0.9877 €
Available: 4,075 pcs.
Leadtime
100 mA/35 V
black
Form A (N/O)
3.6 N
3.45 mm
SMD
5.1 mm
6.4 mm
gold-plated
No
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 3.6 N, SMD
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 3.6 N, SMD
Order No.:
 13G2052
Manufacturer:
 RAFI
Manufacturer SKU:
 1.14.002.001/0000
1.55 € *
1 pcs.
1.5470 €
25 pcs.
1.3209 €
100 pcs.
1.2138 €
250 pcs.
1.1543 €
2100 pcs.
0.9877 €
Available: 1,510 pcs.
Leadtime
100 mA/35 V
red
Form A (N/O)
3.6 N
3.85 mm
SMD
5.1 mm
6.4 mm
gold-plated
No
Short-stroke pushbutton, 1 Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 3 N, THT
Short-stroke pushbutton, 1 Form A (N/O), 100 mA/35 V, unlit , actuator (red, L 1.4 mm), 3 N, THT
Order No.:
 13G2054
Manufacturer:
 RAFI
Manufacturer SKU:
 1.14.002.106/0000
1.90 € *
1 pcs.
1.9040 €
25 pcs.
1.6184 €
102 pcs.
1.4994 €
204 pcs.
1.4280 €
816 pcs.
1.3090 €
Available: 338 pcs.
Leadtime
100 mA/35 V
red
1 Form A (N/O)
3 N
3.85 mm
THT
5.1 mm
6.4 mm
gold-plated
No
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (black, L 1.4 mm), 5.5 N, SMD
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (black, L 1.4 mm), 5.5 N, SMD
Order No.:
 13G2048
Manufacturer:
 RAFI
Manufacturer SKU:
 1.14.002.113/0000
1.65 € *
1 pcs.
1.6541 €
25 pcs.
1.4042 €
100 pcs.
1.2971 €
250 pcs.
1.2376 €
2100 pcs.
1.0472 €
Available: 4,369 pcs.
Leadtime
100 mA/35 V
black
Form A (N/O)
5.5 N
3.45 mm
SMD
5.1 mm
6.4 mm
gold-plated
No
Short-stroke pushbutton, 1 Form A (N/O), 0.1 A/35 V, unlit , actuator (red, L 1.4 mm), 12 N, THT
Short-stroke pushbutton, 1 Form A (N/O), 0.1 A/35 V, unlit , actuator (red, L 1.4 mm), 12 N, THT
Order No.:
 13G2059
Manufacturer:
 RAFI
Manufacturer SKU:
 1.14.002.016/0000
1.37 € *
510 pcs.
1.3685 €
Available: 0 pcs.
Leadtime
0.1 A/35 V
red
1 Form A (N/O)
12 N
3.85 mm
THT
5.1 mm
6.4 mm
gold-plated
No
