Insulating material housing for control devices, 1.20.810.202/0000
Unit Price (€ / pc.)
26.1443 € *
Available: 10 pcs.
Leadtime: 8 Weeks **
Total Price:
26.14 € *
Price list
Quantity
Price per unit*
1 pcs.
26.1443 €
6 pcs.
24.6568 €
10 pcs.
23.1455 €
*incl. VAT plus shipping costs
**Subject to prior sale

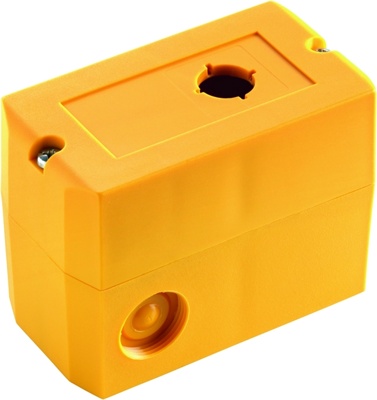

Insulating housing for pushbutton switches etc., mounting hole diameter 22.3 mm. series RAFIX 22QR, type 1.20.
For mounting up to four control elements with M 22 diameter, for example, pushbutton switches of series 22QR. Prepared with two cable entries (1 to 3 inserts M20 x 1.5, 4 inserts M25 x 1.5) and two bore holes for wall mounting; Degree of protection: IP 65. Housing with front panel foil and with facility for labeling strip inserts. The strip inserts can be labeled on a PC printer and are supplied on a prestamped DIN A4 sheet.

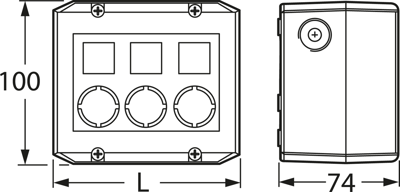

Technical attributes (type, number of inserts, colors, length (L)): 1.20.810.202/0000, 1 insert, yellow/yellow, 55 mm
Technical specifications
| Suitable for | control devices | |
| Accessory Type | insulating material housing |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
